Chemical industry

 Petrochemical Industry     |      2018-11-07 16:57
Explosive bonded clad plate are widely used in chemical equipment because of their high temperature resistance, high pressure resistance, and can be used in a variety of harsh corrosion environments. The main equipments are various reaction towers, precipitation tanks, agitators, desalination units and various heat exchangers. In addition, stainless steel-steel and copper-steel clad plates are used in synthetic fiber manufacturing and paper industry, such as dyeing vats, washing towers and autoclaves, evaporators in caustic soda and salt industry.

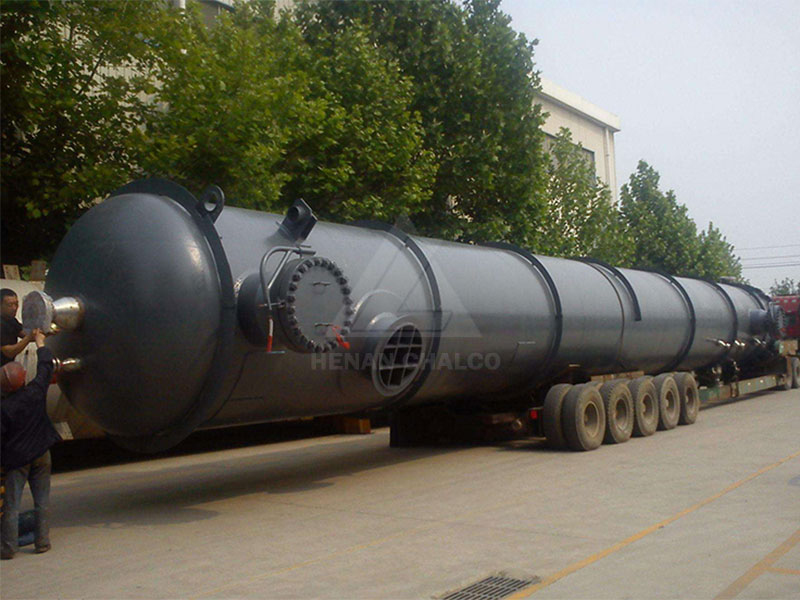

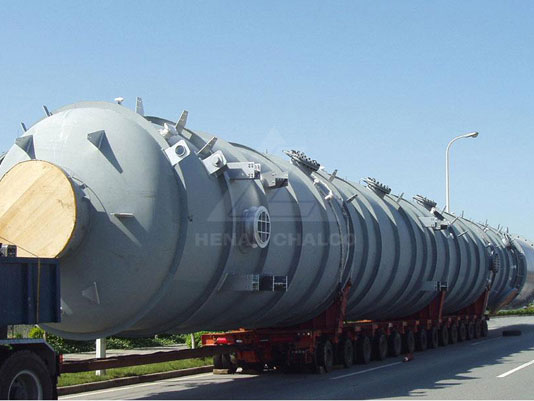

Tower:

PTA脱水塔

Application Main clad plate type Industry
acid tower TA2, Ti/CS clad plate Formaldehyde and so on
Dehydrating tower TA2,TA2/16MnR, SB265 Grl/SA516 Gr70, Ti/CS clad plate Pic, PTA, etc.
Chlorohydrin tower TA2 plate chemical industry
Reorganized sub tower Nickel base alloy plate
Phenol ethyl ketone, etc


Distillation column TA2 plate inylon etc.
Regenerative tower Nickel base alloy C276 plate
Acetic acid etc.


Absorption tower Nickel base alloy plate Sulfuric acid, etc.
Extraction tower SS/CS clad plate Phenol, ethyl ketone, etc.
TDA tower TA2/SA516 Gr.70 clad plate Chemical industry

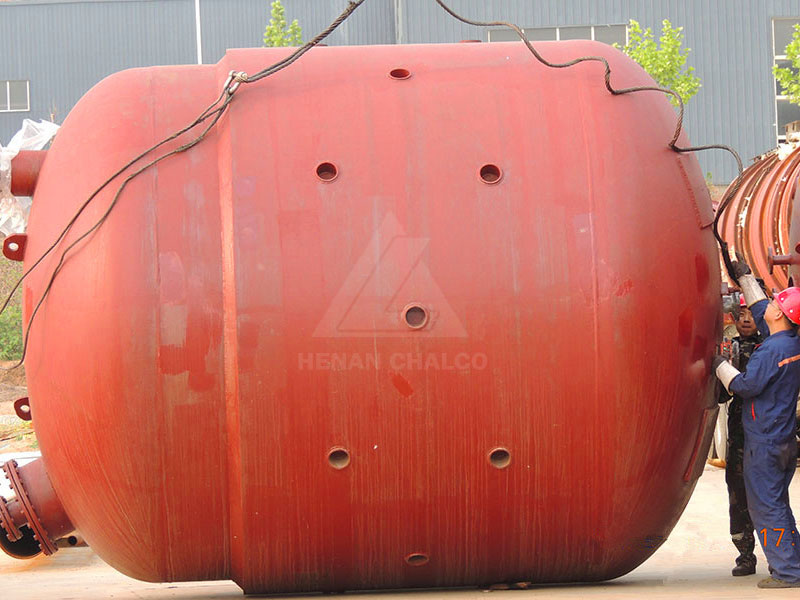

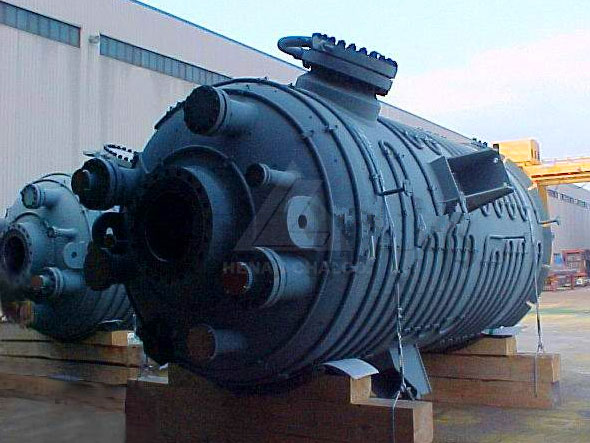

Reaction kettle

反应釜


Application Main clad plate type Industry
Reaction kettle TA2/16MnR, R6070/C276,
Zirconium/steel clad plate
Chlor alkali chemical industry, acetic acid
Neutralization kettle 304/16MnR clad plate polyether
Alkali free cauldron 304/16MnR clad plate chlorinated polyethylene
Chlorinating kettle Tantalum / zirconium/CS clad plate
Polythene

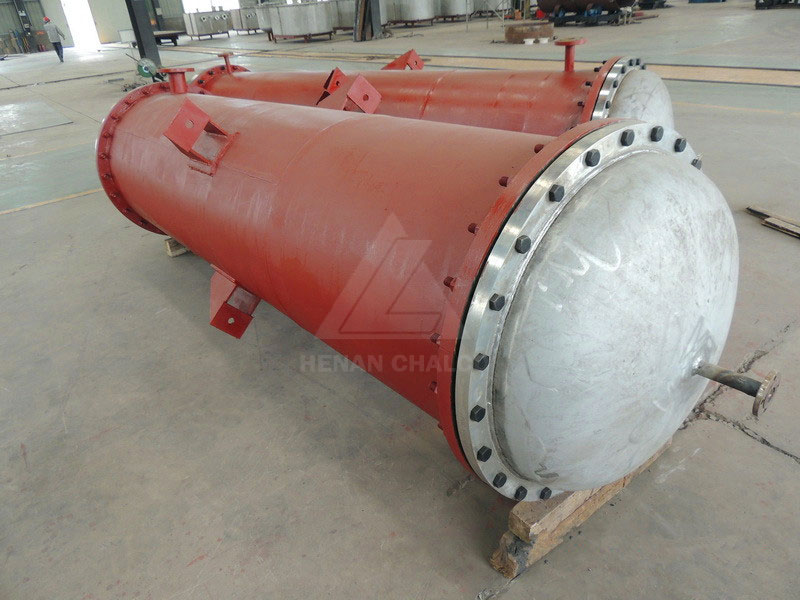

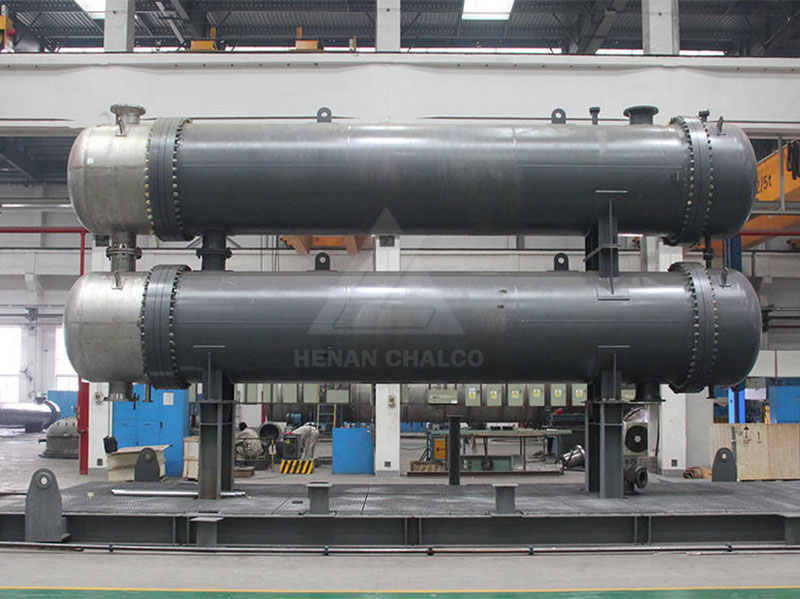

Heat exchanger

Heat exchanger


Application Main clad plate type Industry
Tubular heat exchanger Bfe30-1-1/16MnR, TA2/16MnR, R60702/C276, R60702 Methane chloride, POM, acetic acid
Helical heat exchanger TA2,N6,stainless steel clad plate etc,C276 Propylene oxide, etc.
Plate heat exchanger TA1-1, TA10 Chemical, pharmaceutical, power, metallurgy
U tube heat exchanger H62, Bfe30-1-1/CS Methane chloride, chemical industry
I efficiency heater TA10 vacuum salt
Reboiler C276,Zirconium / steel clad plate POM and so on
condenser TA2, R60702 PTA, acetic acid
evaporator N6/16MnR, Bfe30-1-1/Q235B, H62/Q235B Fine chemicals, methane chloride, etc.
preheater TA2, 0Cr18Ni10Ti/16MnR PTA, synthetic ammonia

synthetic ammonia

Quench device Bfe30-1-1/Q235B Methane chloride

Reactor and reaction tank

Reactor and reaction tank


Application Main clad plate type Industry
Oxidation reactor TA2/16MnR,B265 Gr.2/sa516 GR.60N PTA
Four effect evaporation separator TA9/16MnR, 304/16MnR Inorganic chemicals, polyether
Absorption reactor TA2 Polychloropropane, acetic acid ester
Buffer tank TA2 Chlorinated internal alkane
Centrifuge filtrate tank, re pulp tank TA2/16MnR PTA
Storage tank TA2, TA2/CS, Bfe30-1-1/CS等 Chemical industry, polychlorinated chemical industry
Crystallizer Titanium steel clad plate,SB265 GR.1/SA516 Gr.70 and SB265 Gr.2/SA516 Gr.60N PTA

container, pot


换热器



Application Main clad plate type Industry
Waste pot 0Cr18Ni10Ti/16MnR synthetic ammonia
Storage container Bfe30-1-1/CS, TA2/Q235B, TA2, 316L/16MnR Chlor alkali chemical industry, acetic acid


不锈钢复合板 stroage tanks


Application Main clad plate type Industry
Chlorinated smelter TA2/16MnR chlorinated polyethylene

Vulcanized bed INCONEL600/16MnR Chlor alkali chemical industry

Electrolyzer 1 TA2, TA2/Q235B Chemical fiber industry
Waste liquid pipe Zirconium and zirconium alloysR60702 Polyoxymethylene
Chlorine gas head Titanium and nickel Ion-exchange membrane caustic soda
Batching tank 304/16MnR chlorinated polyethylene


1-1FS0022105106

Application Main clad plate type Industry
Oxidation tower 316L/16MnR textile industry
Reaction kettle TA1 Papermaking
Double stirred bulk polymerization PVC polymerizer 304/16MnR PVC
PVC polymerizer with jacket in full circulation

304/16MnR PVC
separator 304/Q235B Paper making
Degasser TA2 Paper making
Sugar machine 304/Q235B


Application Main clad plate type Industry

Stuffing box type heat exchanger

TA2 Pharmacy Industry
Reactor Gr11 Pharmacy Industry
Reaction kettle TA2/CS Pharmacy Industry
