Corc-G wear resistant plates

 Wear resistant material     |      2018-11-15 16:00
Specification parameters: working face (T8, T10, 3Cr13, 4Cr13); basic level (ordinary carbon steel);
Composite mode: explosive welding, metallurgical bonding
Hardness of working face is HRC60 + 2 (T8, T10); HRC52 + 2 (3Cr13, 4Cr13).
Working face thickness: 6~10mm; base thickness: 10~40mm

Product Features: Corc-G wear resistant plates is a bimetal composite wear-resistant material, its wear-resistant layer for high hardness, high wear-resistant Material, the base material is the material with better impact resistance and toughness. By means of explosive welding, two materials with obvious difference in performance are firmly combined to make a new high wear-resistant liner material. The liner made of this material not only has higher hardness and wear resistance, but also has better flexibility and impact resistance.

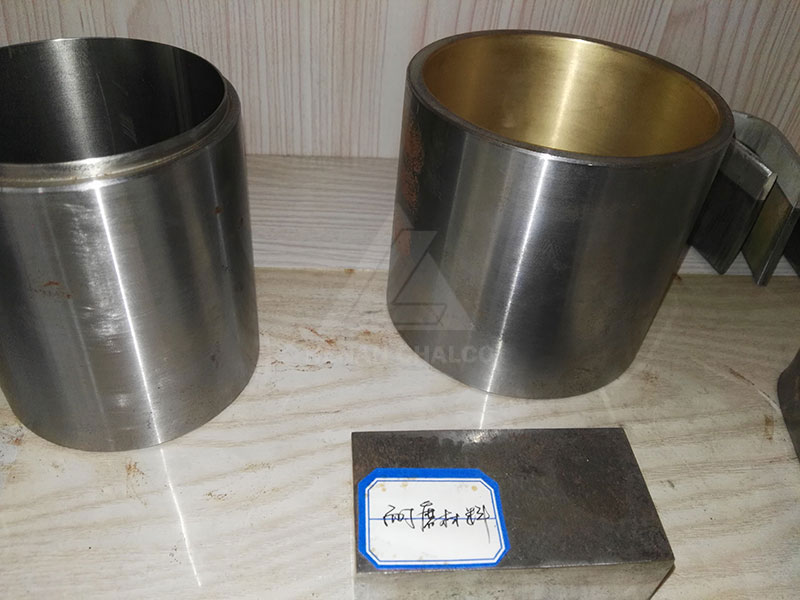

Corc-G wear resistant plates

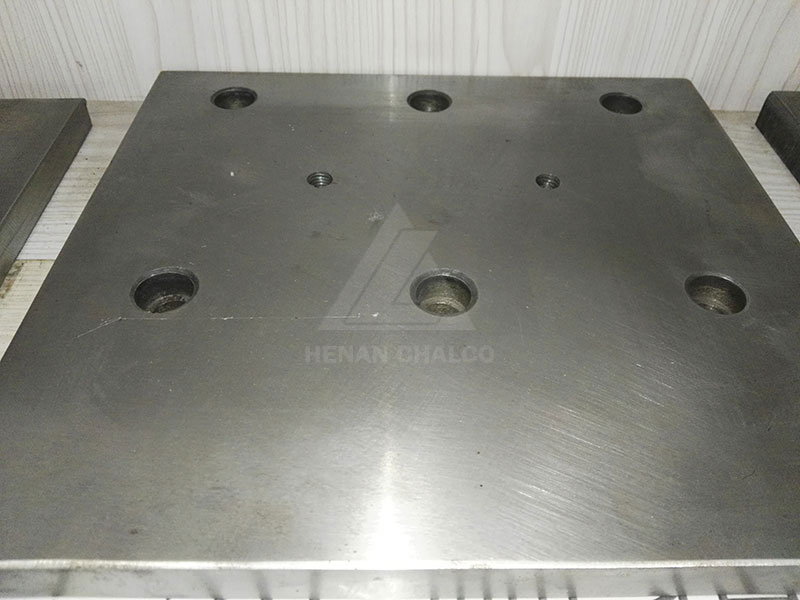

Corc-G wear resistant plates

Application: mainly used for large area wear, high temperature and other harsh conditions. Wear resistance of slewing bearing in metallurgical industry parts, sealed slideway and wear-resisting guide rail, mill arch and work roll, support roller bushing plate.
