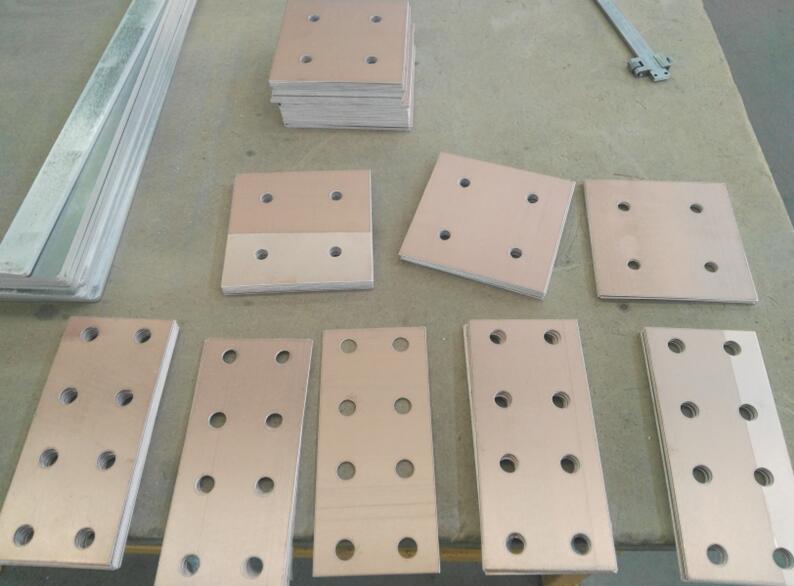

aluminum to copper transition plate

 News     |      2021-01-19 16:08
Aluminum to copper transition plate is a kind of copper-aluminum transition plate for power transmission connection. Copper-aluminum transition plate is mainly used for transition between high-voltage equipment wiring boards. High-voltage equipment has copper wiring boards and aluminum wiring boards, so A copper-aluminum transition wiring board is required, and a copper layer is provided on the lower half of the substrate surface, and the copper layer and the corresponding substrate surface are closely fused and connected into an integrated non-soldering structure to prevent the direct After the touch operation time is too long, the resistance of the contact point increases and malfunction occurs.



Chalco Aluminum specializes in the production of aluminum to copper transition plate. Thick plates are obtained by explosive compounding, and thin plates are obtained by rolling compound. The product has high compound strength and completes the touch surface compound between copper and aluminum. The mechanical function is good, and it can meet the processing requirements of bending, drilling, punching, etc. Excellent electrical conductivity, large copper-aluminum transition area, smooth transition, which solves the problems of low conductivity and easy cracking at the copper-aluminum joints of traditional copper-aluminum transition plates, which is greatly reduced compared with traditional technology transition plates.

Base material 1050,1060,1070, 3003, 8011等。
Cladding material T2
Standard GBT 32468-2015
Thickness 0.1--14.5mm
Width ≤1200
Length ≤6000mm
Copper coating thickness K % 8~30
Temper O, H24, H18
