Characteristics of titanium copper clad rod

 News     |      2022-04-12 17:41
The production of caustic soda by metal anode electrolyzer is known as a revolution in chlor alkali industry. Titanium copper clad road is the main component of metal anode. It integrates the excellent conductivity of copper and the excellent corrosion resistance of titanium, successfully replaces graphite anode, increases its service life by more than 10 times, saves energy (electricity) by more than 20%, and improves the purity of caustic soda. It is an excellent electrode material. Recently, it has been reported that titanium copper clad rod, as a conductive rod, has been applied to the electrolytic copper industry. After use, it improves the conductivity and current efficiency and reduces the power consumption. At the same time, the service life of the electrode is improved and the maintenance cost is reduced.

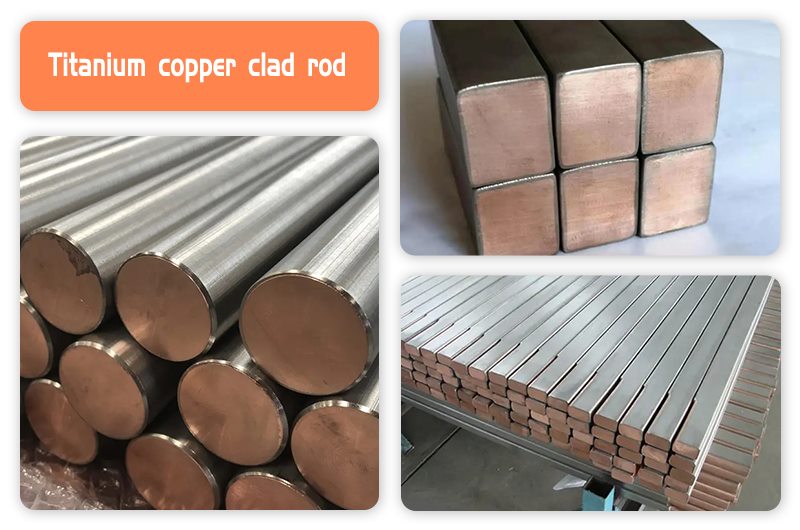

 titanium copper clad rod

The characteristics of titanium copper clad rod produced by extrusion method is that the composite rod has high composite strength and good composite fastness. When turning threads in electrode machining, the turning speed is fast, the feed is large, and there is no separation of titanium and copper; High production efficiency, suitable for mass production. The disadvantage is that the surface roughness of extruded bar is slightly poor and the bending resistance is low. After a certain amount of cold stretching, the bending resistance of the composite bar is improved, the surface roughness is also improved, and the dimensional accuracy of the product is improved, and good results are obtained. Very popular with users. At present, the titanium copper composite bar supplied in the market is mainly produced by extrusion + drawing method.


The explosion method is to first put the copper rod into the titanium tube, evenly distribute explosives outside the titanium tube, and detonate the explosives with detonators, so that the copper rod and titanium tube form a composite under the action of explosive force. Because the section size of titanium copper composite rod is generally small, the production efficiency of explosion method is low, resulting in high cost. At present, no one adopts this method in industrial production. Explosion + rolling method is to use large-size titanium tube and copper bar to form blank by explosion method, and then use pass rolling method to produce finished composite bar. The schematic diagram of explosion blank making is shown in Figure 1. Compared with direct explosion method, this method has the advantages of improving efficiency and reducing cost. The composite bar produced also has good composite strength and other indexes. However, because the rolling processing volume should not be too large, that is, the elongation coefficient is not large, it is not suitable for mass production. At the same time, the corner of the rectangular composite rod is not easy to be filled. If the deformation of pass is not well controlled, there may be crimping or ears. Due to the hot rolling of finished products, the bending resistance of the composite bar is worse, which has an impact on the use. At present, only rectangular and flat bars are produced by this method。
